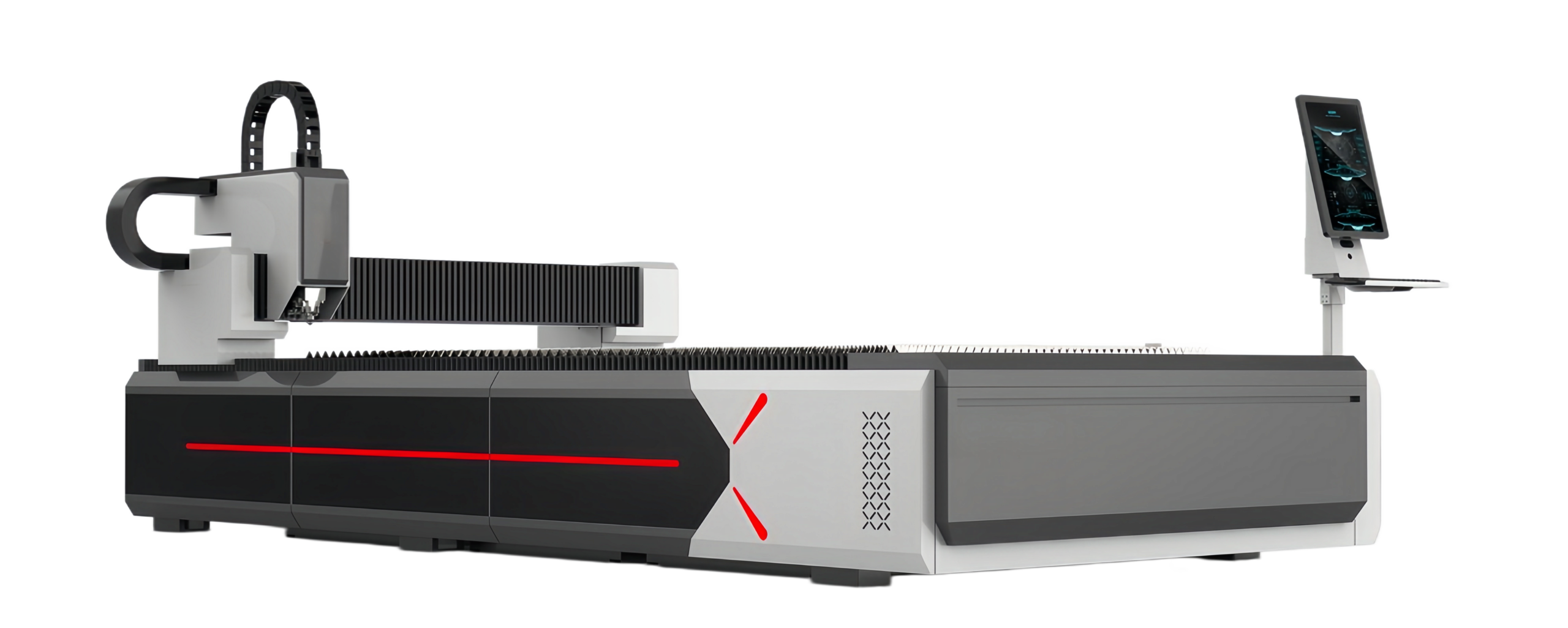

GX-A/AE/AP
Single-platform laser cutting machine
●Heavy-duty, high-rigidity machine bed
●High-speed, high-precision servo motor
●Standard Air-Filtering, Constant-Temperature Air Conditioning Unit
●Dual-temperature, dual-control water-cooling design
●A single 20GP container can hold 3 units.
Technical Specifications
Machine Model | GK-3015AE |
XY-axis travel range | 3015/4015/4020/6015/6020 etc. |
Laser output power | 1500W-20KW |
X/Y Axis Repetitive Accuracy: | ±0.05mm |
Positioning accuracy | ±0.03mm |
Maximum operating speed | 150m/min |
Conventional acceleration | 1.0G |
Total power consumption of the machine | 14KW |
voltage | 220V 50/60 HZ |
Maximal acceleration | 1.2G |
File format | Vector file |
Light decay rate | ＜3%/Year |
Laser wave length | 1080nm(±10) |
Beam output quality | ＜1.4M2 |
Photovoltaic conversion efficiency | >33% |
Automatic focal length range | ±50mm |
Focal length | 150mm |
Gas | Air: Oxygen, Nitrogen |
water cooling | Dual temperature control |
Work humidity | 10-85(%) |
Storage temperature | 20-30 degrees Celsius |
Output Mode | Continuous/pulse |
Working temperature | 10-40（℃） |
Warranty | 2Year |

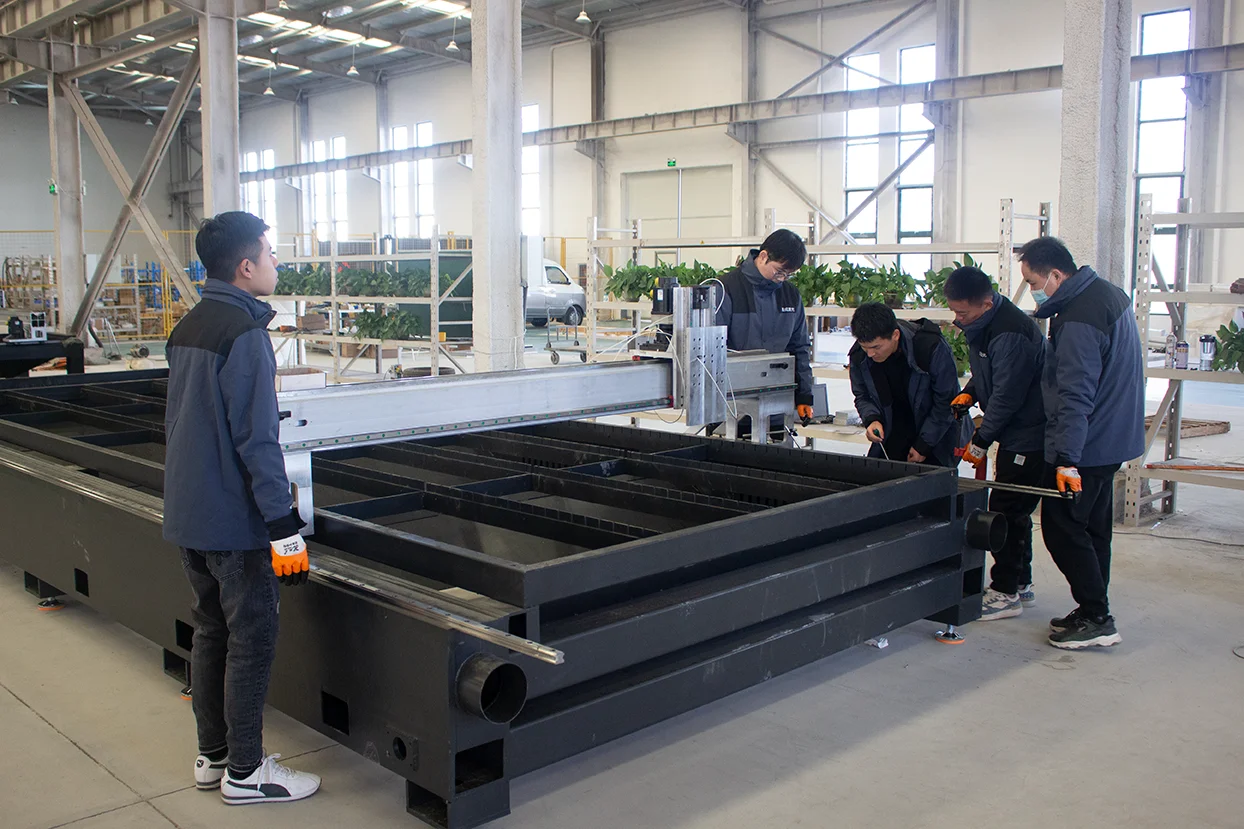

Bed structure
Steel Plate welding
●1500W-5mm 3000W-6mm 6000W-8mm 12KW 12mm
●Internal reinforcement ribs are welded in place to increase structural strength.
●Dual-flue design with no internal obstructing plates, ensuring superior dust removal performance.
●100% annealed and sandblasted; video available upon request.
●A single 20GP container can hold 3 units.
